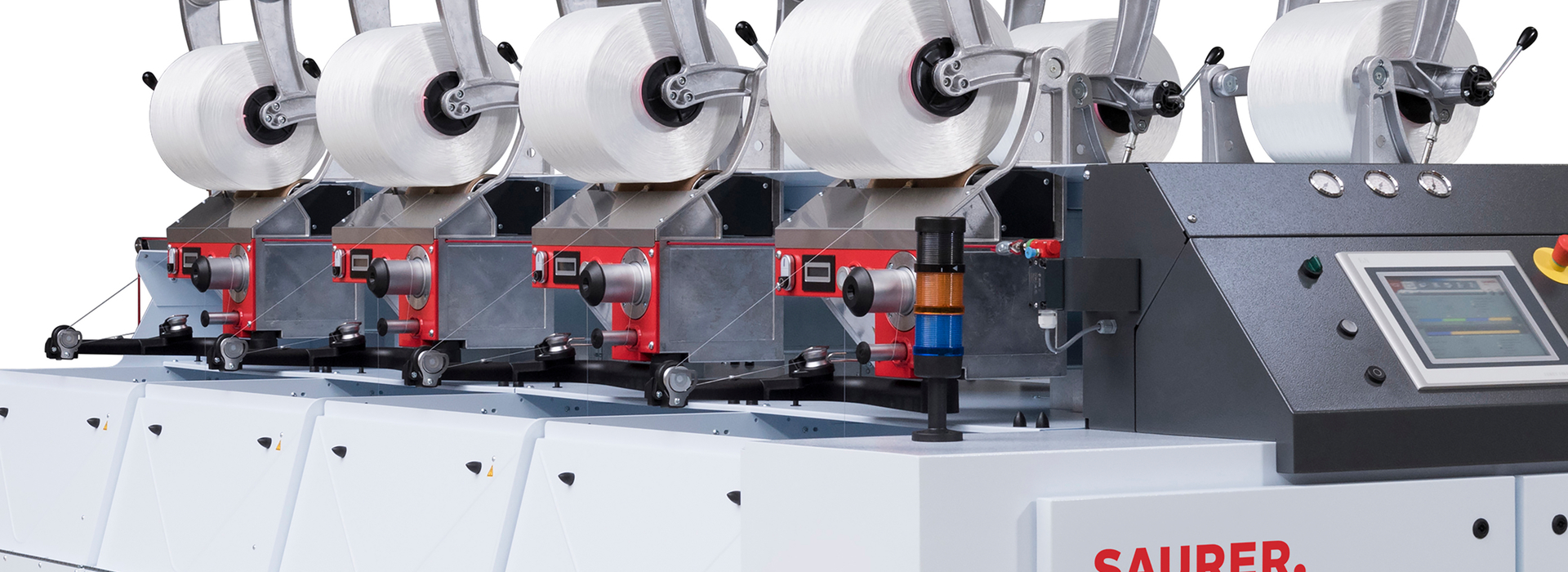

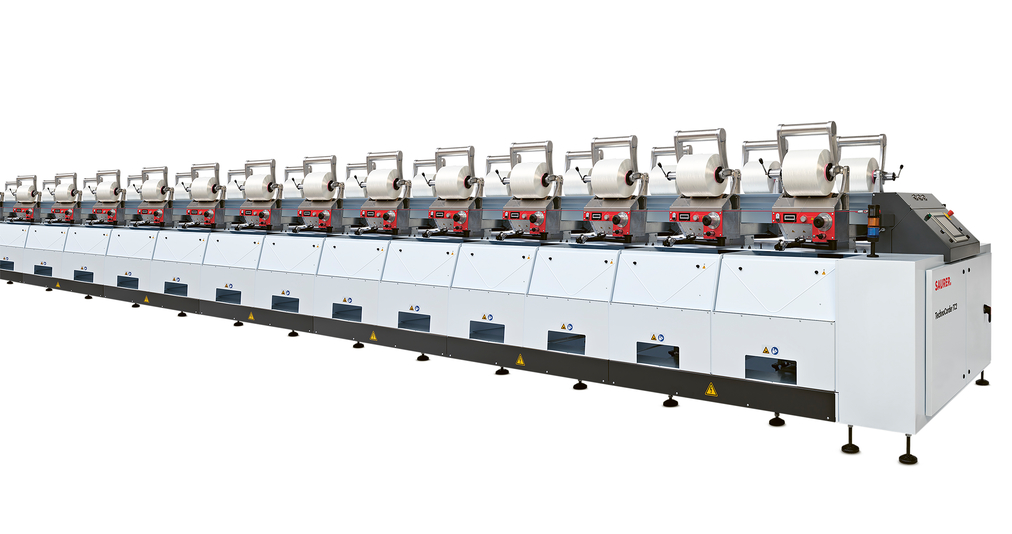

TechnoCorder TC2
Two-for-one twisting machine for opening up new markets for technical yarns
The two-for-one twisting machine TechnoCorder TC2 for technical yarns is characterised by its worldwide unique productivity of up to 400 m/min delivery speed. The machine concept offers you ultimate flexibility in production, material and yarn counts of technical yarns. Self-sufficient spindles enable individual settings for each spindle. New in the product range is a further spindle gauge for a wider range of counts and the FlexiPly software for a higher variety of yarn constructions. You can react to market requirements and even the smallest lots or samples can be economically produced.
The two-for-one twisting machine TechnoCorder TC2 for technical yarns is characterised by its worldwide unique productivity of up to 400 m/min delivery speed. The machine concept offers you ultimate flexibility in production, material and yarn counts of technical yarns. Self-sufficient spindles enable individual settings for each spindle. New in the product range is a further spindle gauge for a wider range of counts and the FlexiPly software for a higher variety of yarn constructions. You can react to market requirements and even the smallest lots or samples can be economically produced.

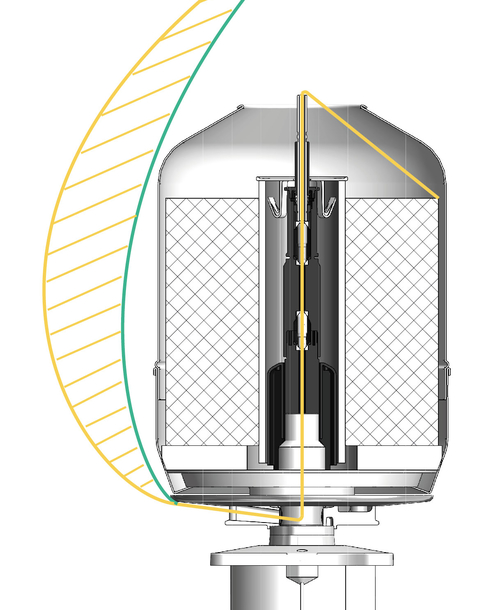

- Optimised balloon geometry
- Use of a balloon limiter ring
- 400 m/min delivery speed
- High package density
- Wide yarn count range 110 to 60 000 dtex
- High production flexibility thanks to autarkic spindles
- FlexiPly for hybrid yarns
- Unrestricted access of twisting positions
- Easy cleaning of machine
Innovations

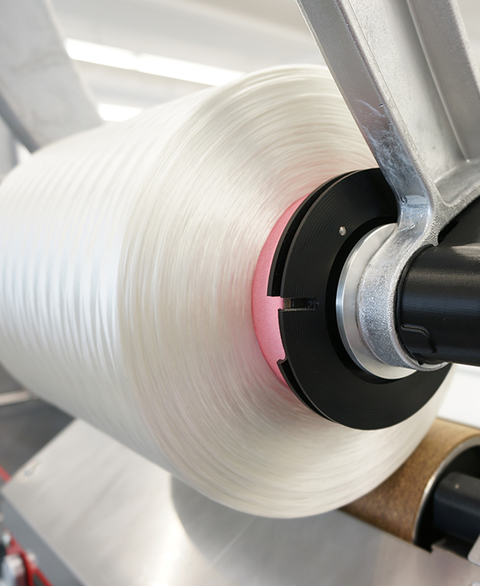

- PreciWinding (TC2 Plus)
Newly developed take-up area for producing twist packages in an outstanding quality
- Oiling device
Device for finishing the yarn directly after the twisting process
- Spindle for fine-count yarns
Special spindle combination for processing yarns with a yarn count from 110 dtex upwards
Picture gallery

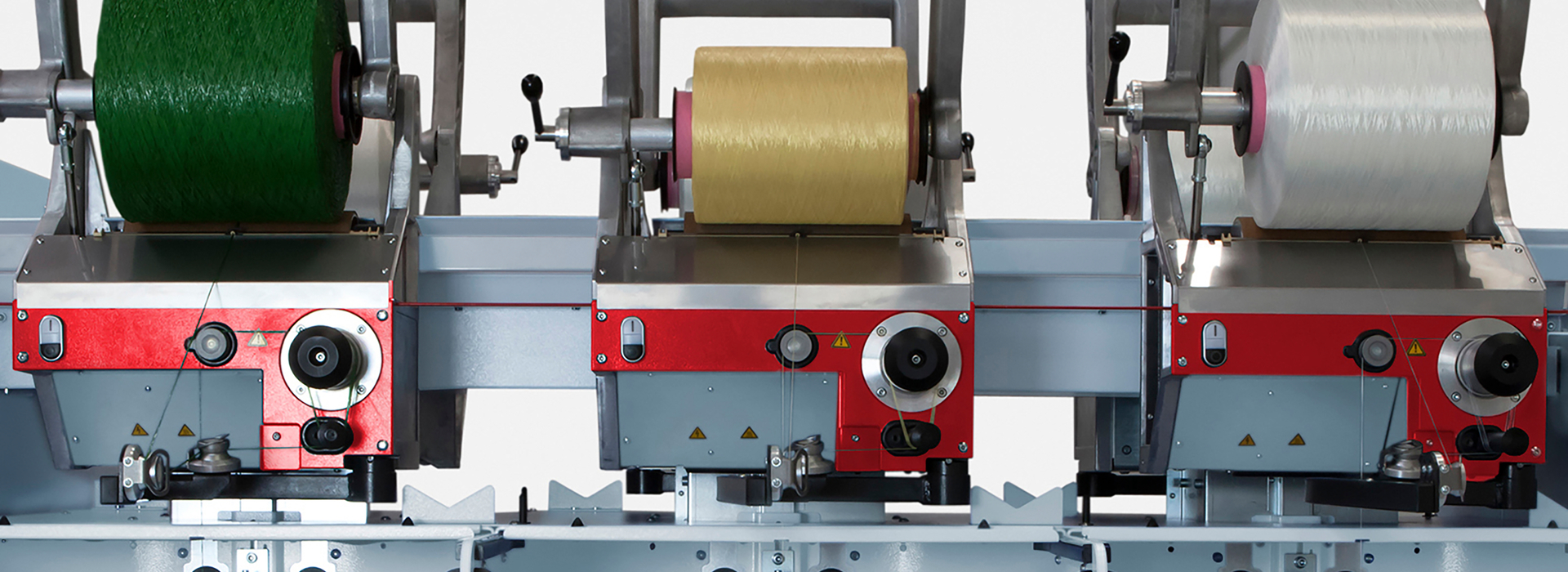

As versatile as the market
TechnoCorder TC2
Related articles
Here you will find further information – for example application reports, customer success stories and interviews – about the above product.
Downloads
TechnoCorder TC2 product brochure EN
3.02 MB
TechnoCorder TC2 product brochure DE
3.03 MB
TechnoCorder TC2 product brochure ES
2.33 MB
TechnoCorder TC2 product brochure FR
2.33 MB
TechnoCorder TC2 product brochure RU
2.38 MB
TechnoCorder TC2 product brochure TR
3.04 MB
TechnoCorder TC2 product brochure ZH
3.18 MB
Strong and reliable life-cycle partnership.
Unique smart solutions to increase the benefit to the customer.
Notable performance and sustainability throughout the machine lifetime.
We keep you competitive.
Contact us
