Precise single synchronous motor drive
Operating is rendered more comfortable to the operating maintenance personnel thanks to the mature technical design, e.g. comfortable placement height. Every twisting position is equipt with an individually start and stop function.
Precise ring rail control
The ring rail control is monitored by linear encoder. Due to a central working spring compensation unit, use of counterweights is not necessary. Subsequent processes will run more smoothly with the optimum unwinding characteristics.

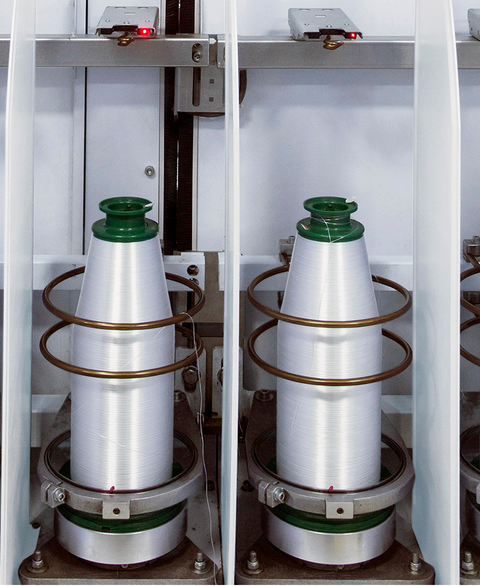

Perfect package building and monitoring of twisting position
For best package construction, several frequency inverters are integrated for motor control of creel baskets, ring twisting spindles and servo drives for controlling the ring rail motion.
The optimum combination of the two units, PreTwister and DownTwister, via CAN bus ensures the perfect control and monitoring of each twisting position.
