Rings and travellers
Running performance at its best.
Rings and travellers are the dominant elements in the ring-spinning process. Key to success is the reduction of the friction coefficient to the lowest level possible. At this point you will get the perfect balanced spinning geometry – that means the spinning tension is on a constant balanced level.
The reduction of friction will be achieved if the rings and travellers establish a symbiosis. Therefore we focused on the ideal combination of rings and travellers. The aspired ideal friction stands for:
- Higher traveller speed
- Lower working temperature
- Extended ring and traveller life time
- Avoidance of yarn tension peaks
- Better yarn quality (reduction of hairiness)
- Reduction of end breaks
Furthermore the ideal friction strikes the balance between:
- Traveller drive angle to ring
- Traveller weight
- Traveller and ring geometry
- Traveller and ring coating
- Ring positioning
Rings and travellers are the dominant elements in the ring-spinning process. Key to success is the reduction of the friction coefficient to the lowest level possible. At this point you will get the perfect balanced spinning geometry – that means the spinning tension is on a constant balanced level.
The reduction of friction will be achieved if the rings and travellers establish a symbiosis. Therefore we focused on the ideal combination of rings and travellers. The aspired ideal friction stands for:
- Higher traveller speed
- Lower working temperature
- Extended ring and traveller life time
- Avoidance of yarn tension peaks
- Better yarn quality (reduction of hairiness)
- Reduction of end breaks
Furthermore the ideal friction strikes the balance between:
- Traveller drive angle to ring
- Traveller weight
- Traveller and ring geometry
- Traveller and ring coating
- Ring positioning
The next Gen of Texparts Rings
Texparts product line introduces a new generation of rings – Hunter, Diamo, and Hurrican - designed to meet the increasing demands of modern ring spinning. The rings ensures optimal performance, higher productivity, and outstanding durability. Complementing the range with the innovative Texparts traveller gun, developed for fast, ergonomic, and efficient traveller replacement.

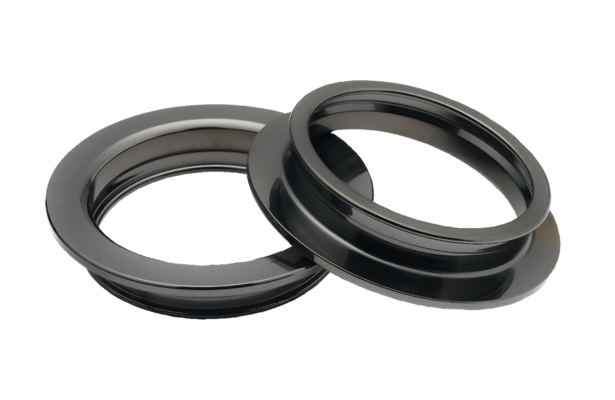

Diamo
Perfect solution for spinning speed up to a maximum
within a short time.(This coating technology can be
applied for any types Texparts rings)
- Excellent wear resistance performance
- Vickers hardness exceeding 2000 HV0.2
- Increases the service life of ring up to15%
- Zero-friction miracle
- Surface friction coefficient Ra < 0.05
- Super lubrication effect can be achieved on nanoscale surfaces
- Almost no running-in program to high spindle(≥19000rpm)
- Maximizes customer efficiency

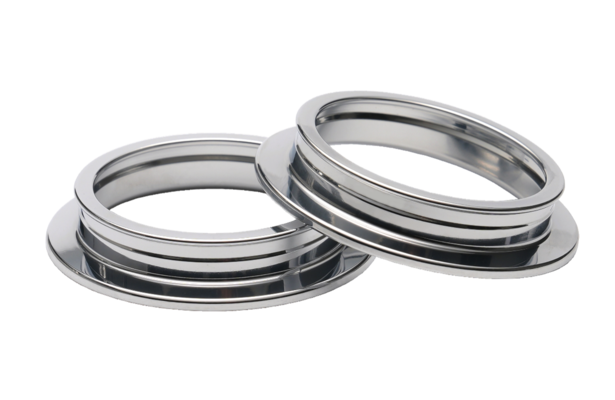

Hurricane
Perfect solution for spinning speed up to 28 000 rpm
Traveller speed up to 52 m/sec* (for 36 mm rings)
- Excellent material and hardness
- Made from high-quality bearing steel it features high fatigue contact strength
- The surface Vickers hardness HV0.2 ≥ 950 ensures an exceptionally long service life
- Advanced Coating Process
- Special Chrome coating process ensures uniform coating with a coating thickness of ≥ 15μm in the inner runway areas
- Extremely low breakage rate significantly improves production efficiency and yarn quality
- Wide applicability and consistency
- A rigorous quality control system ensures dimensional accuracy and performance consistency
- Suitable for various spinning fibers, covering all yarn counts

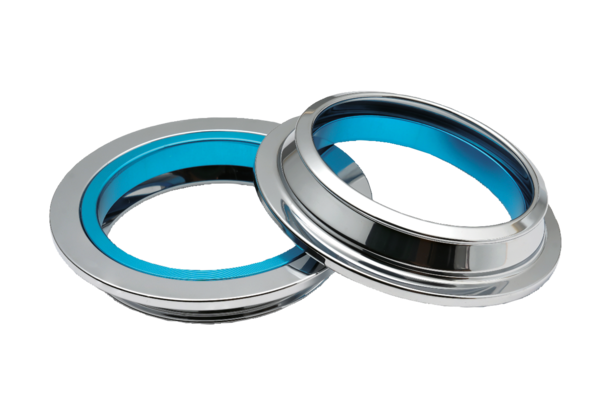

Hunter
Perfect solution for spinning speed up to 26 000 rpm
Traveller speed up to 51 m/sec* (For 38 mm rings)
Bigger contact area of the traveller due to special design
- Reduces wear
- Better heat dissipation
- High-quality bearing steel material
- Automatic CNC and special chrome-coating
- Increase the speed by 10% ~ 30%
- More stable yarn tension and yarn balloon
- Service life ≥ 8 years

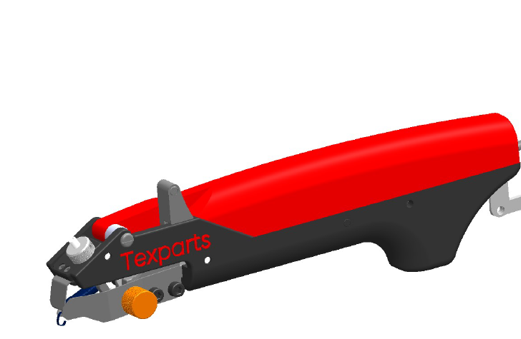

Traveller gun
The excellent match to high-performance ring solutions is the traveller gun with its magazine system for C-shaped ring travellers with a capacity more than 3 storage bars, each holding 120 to 360 ring travelers. Using traveller setter to replace the traveller means less operators and faster traveler changeover. Saving the time and reducing the ring machine stop time.
- Easily operation
- Less operator
- Prevented traveler's mispacking and mixed-up replacement
- Reduced downtime of spinning machines, boosting production efficiency
