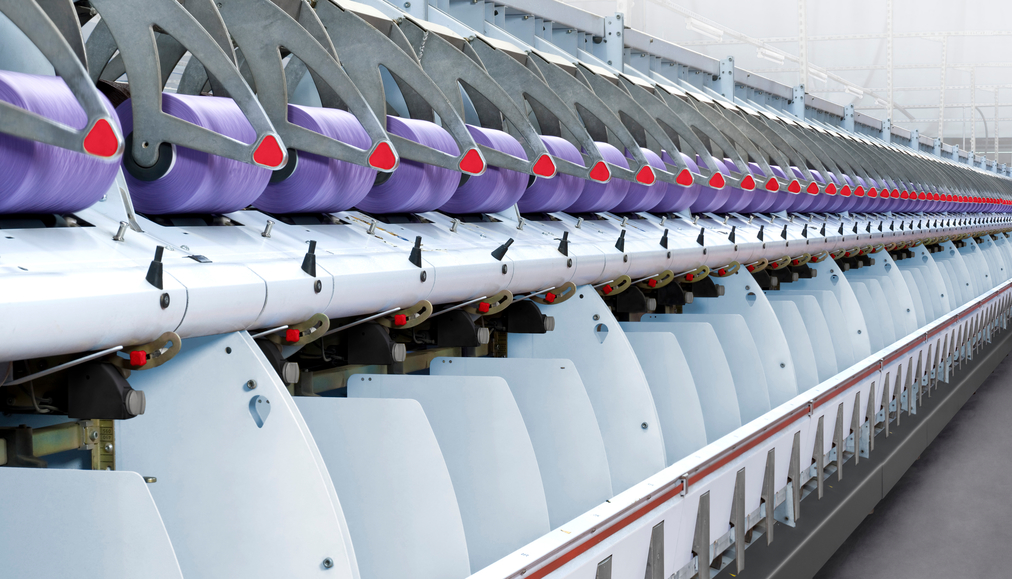

CarpetTwister
Two-for-one twisting machine
Our CarpetCablers and CarpetTwisters have been successfully used for decades to produce high quality, premium yarns for quality carpets and other textiles in the most economical way.
They offer optimum possibilities for reliably and confidently mastering even the most unusual requirements of an ever-changing market.
Our CarpetCablers and CarpetTwisters have been successfully used for decades to produce high quality, premium yarns for quality carpets and other textiles in the most economical way.
They offer optimum possibilities for reliably and confidently mastering even the most unusual requirements of an ever-changing market.
Optimized spindle family enables energy savings
The spindle family covers following types:
|
Dimensions [mm] |
Universal 285 |
Spindle 285 |
Spindle 260 |
Spindle 220 |
|---|---|---|---|---|
|
Feed pot package |
285 |
285 |
260 |
220 |
|
Spindle gauge |
495 |
495 |
445 |
445 |
Energy savings due to energy optimized machine components
-
High class efficiency main drive motors
-
Optimized bearings in the entire spindle area
- Higher productivity by delivery speeds of up to 120 m/min when up-twisting
- Less space needed due to closer spindle spacing
- Higher production speeds due to low yarn balloon tension
Reduced machine operating time due to central adjustments
Fast, simple and precise motor-driven drive for an optimum height position.
An optimum, uniform height position on all yarn balloon guides.
Package conveyor belt to rapidly clear away the finished packages
Easy and quick yarn threading due to Volco-/Creeljet-Systems
Computer-controlled electro-mechanical gearbox
Why are carpet yarns twisted on our Two-for-One twister ?
The reasons are essentially two-fold:
- In order to produce a stable, open pile thread under conditions of maximum cost efficiency. This applies particularly to BCF filament utilized as single yarns for the manufacture of particularly thick carpets by the tufting process. The upgrading process used in this case is generally referred to uptwisting.
- In order to manufacture a particularly durable thread for woven carpets. In this case, preference is given to staple fibres, wool or polyacrylate yarns, or polyamide, polypropylene and various blends specifically devised for the manufacture of carpets. The process used in this case is classic Two-for-One twisting.
and more...

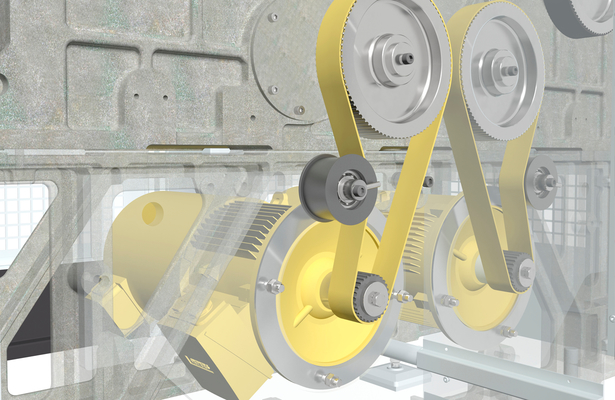

Computer controlled electronical drive system
- fast, easy and save adjustment
- low personnel costs
- higher machine availability
- higher production and reliability

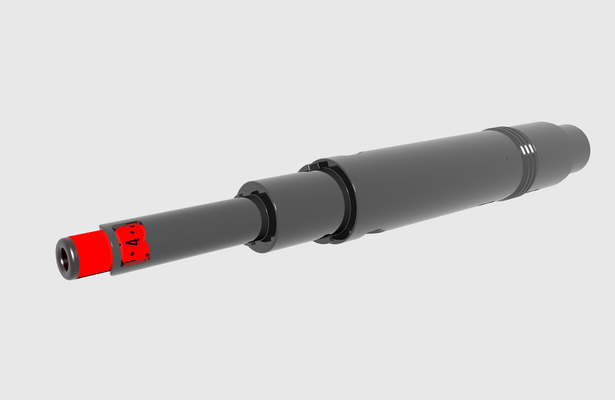

Ball yarn brake in spindle pot
The ball yarn brake covers the entire yarn tension range with the wear-resistant ceramic ball. A simple turn of the inlet tube quickly adjusts the braking force over 24 levels.
