CarpetCabler 1.10
Direct cabling machine
For over 35 years, our CarpetCablers and CarpetTwisters have been producing high-quality yarns for sophisticated carpets and other textiles.
Innovative developments, use of the latest technology at all times and the readiness to go one step further with and for our customers have been a common thread over the decades.
Our new series 1.10 offers optimum possibilities for reliably and confidently mastering even the most unusual requirements of an ever-changing market.
For over 35 years, our CarpetCablers and CarpetTwisters have been producing high-quality yarns for sophisticated carpets and other textiles.
Innovative developments, use of the latest technology at all times and the readiness to go one step further with and for our customers have been a common thread over the decades.
Our new series 1.10 offers optimum possibilities for reliably and confidently mastering even the most unusual requirements of an ever-changing market.
Optimized spindle family enables energy savings
The spindle family covers following types:
| Dimensions [mm] | Universal 285 | Spindle 285 | Spindle 260 |
| Feed pot package | 285 | 285 | 260 |
| Spindle gauge | 495 | 495 | 445 |
Energy savings due to energy optimized machine components
- High class efficiency main drive motors
- Optimized bearings in the entire spindle area
- Higher productivity by delivery speeds of up to 120 m/min when up-twisting
- Less space needed due to closer spindle spacing
- Higher production speeds due to low yarn balloon tension
Reduced machine operating time due to central adjustments
Fast, simple and precise motor-driven drive for an optimum height position.
An optimum, uniform height position on all yarn balloon guides.

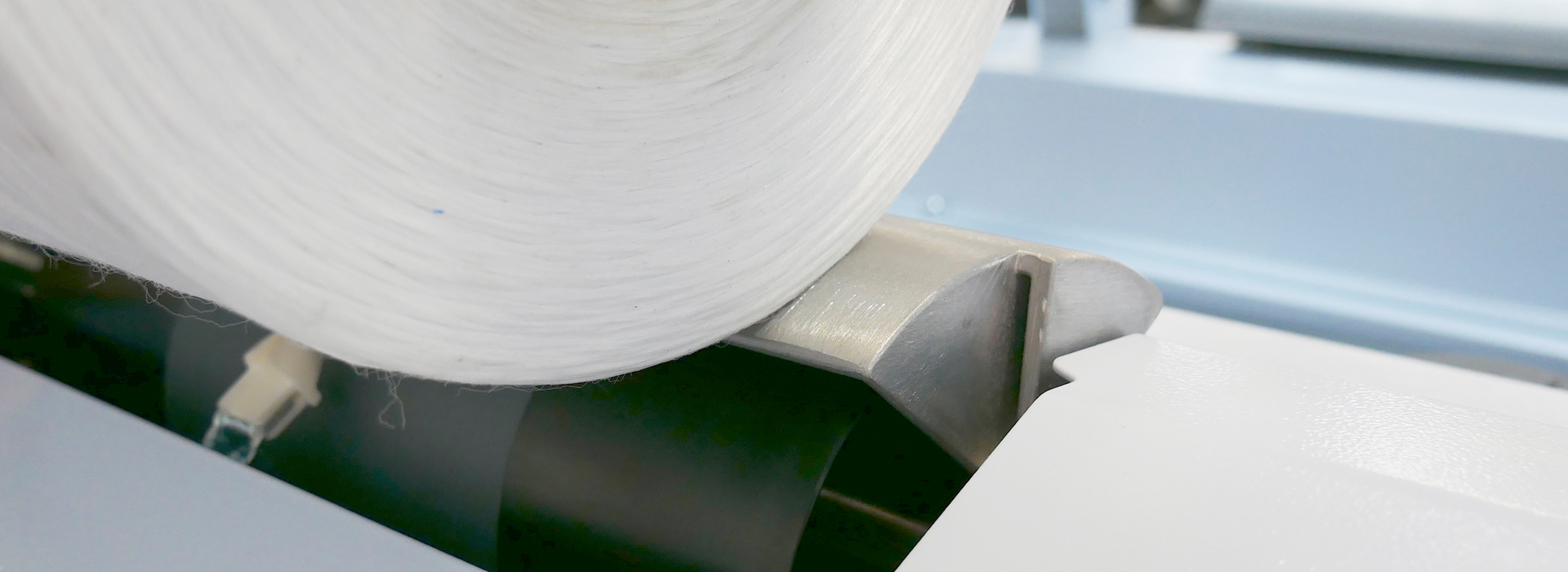

Package conveyor belt to rapidly clear away the finished packages
Easy and quick yarn threading due to Volco-/Creeljet-Systems
Computer-controlled electro-mechanical gearbox
Why are carpet yarns directly cabled on Saurer cabling machines?
- Cabling is a mechanical yarn upgrading process which precedes carpet production.
- Cabled yarns are ideal for ensuring the formation of a high-quality pile during the manufacture of rugs and carpets.
- In the direct cabling process, two yarns are twisted around each other in a single operation without the individual strands themselves being twisted.
Conversion of direct-cabling machine to two-for-one twisting machine

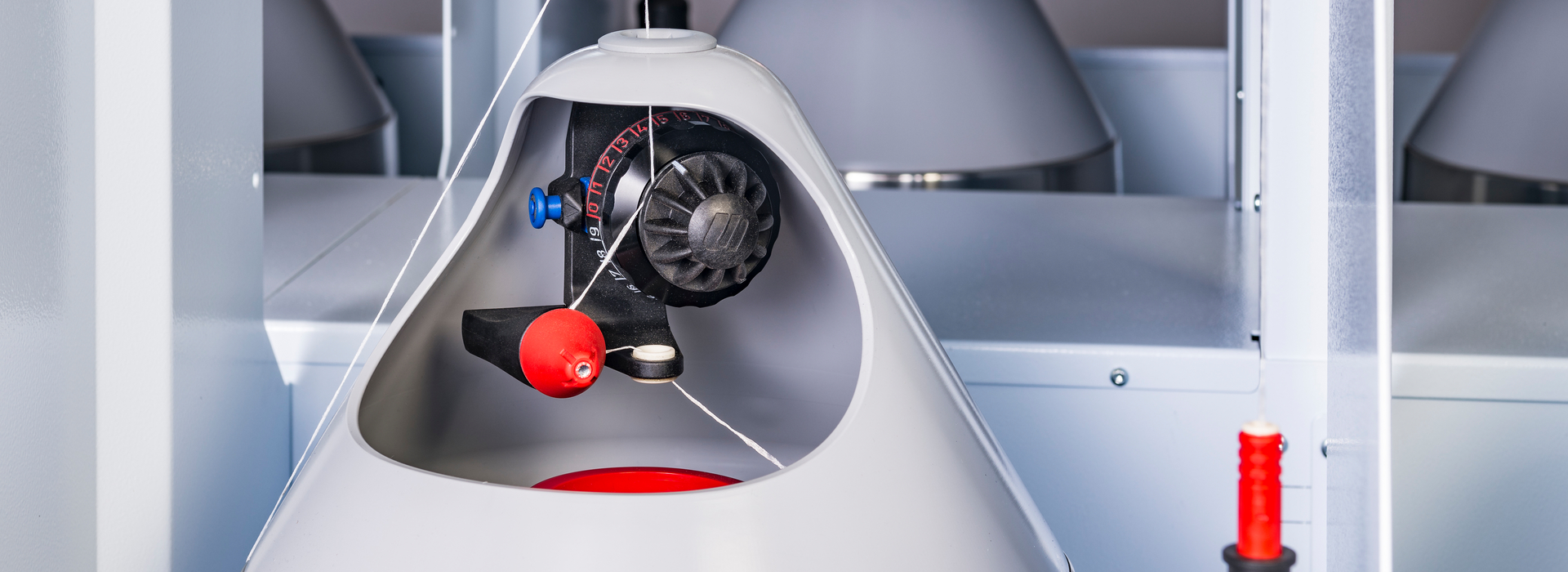

The universal hollow-shaft spindle allows the simple alternating conversion from the two-for-one method to the cabling method. The high-quality and wear-resistant surface enables a yarn guidance without damaging the strand. The ideal design of the spindle pot allows a maximum number of feed packages. The reserve disc with its wear-resistant special surface guarantees a balanced tension level in the yarn balloon.
Novelties
- Control panel (human-machine interface)
The new control panel with multitouch technology and the innovative user interface makes operation even more intuitive and easier.
It registers, controls and monitors the entire production sequence and administers all machine and lot parameters as well as your production data.
The simple and self-explanatory user interface guarantees fast and straightforward input and simplifies machine control. Stored lot data can be called up easily and simplifies handling.

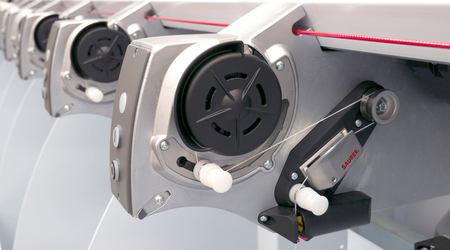

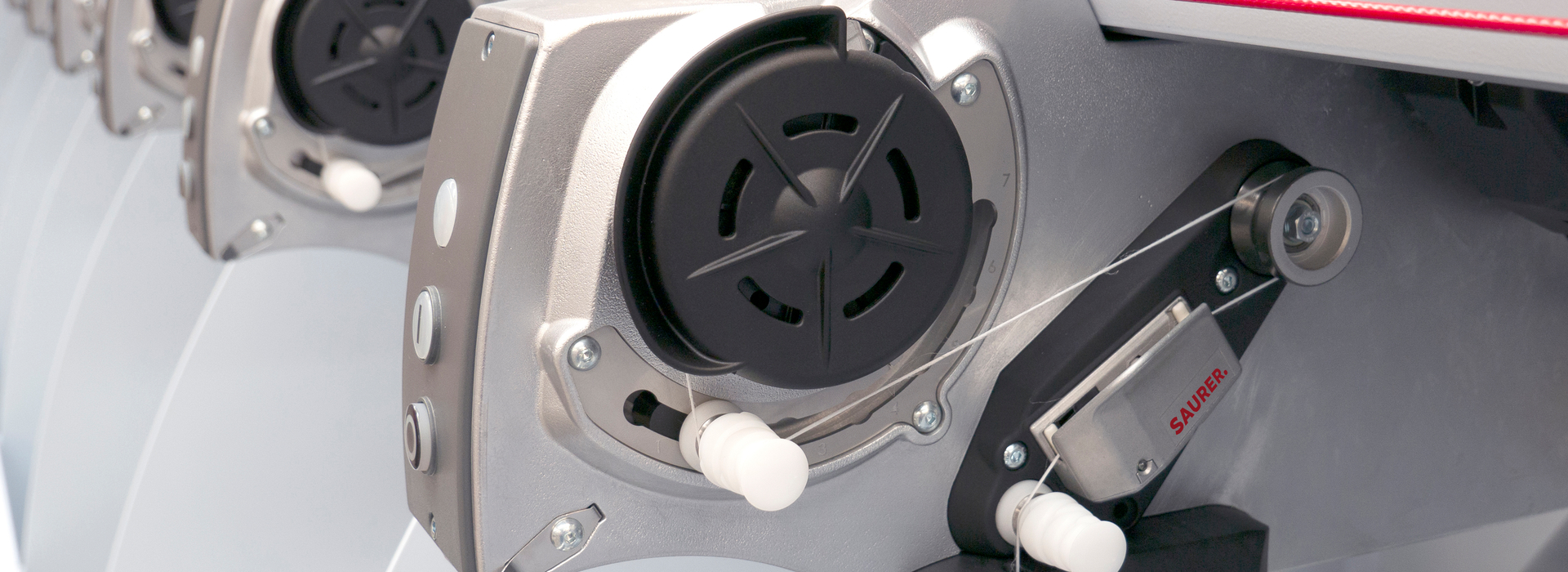

- Overfeed roller
Depending on the wrap-around angle, the pre-take-up roller reduces the balloon tension to the desired take-up tension. The overfeed covers enable safe working and additionally carry the yarn clamp and the storage pin for easy intermediate storage of unwinding aids.
and more...
Quality sensor
Our latest generation of quality sensor takes the testing of your yarn to a new level. By combining intelligent software and innovative evaluation technology, the new quality sensor generates the best possible results for your strand quality.
The quality sensor always provides the right basis to increase significantly the quality standard of your strand.
Pneumatic Hi-Lo creel
The pneumatic Hi-Lo creel makes it easier to present the packages due to its clear and simple operation. The reduced working height supports the operator during loading. It almost slides automatically into the operating position.
Further advantages:
- Ergonomic loading position
- Simple high-low operation
- Robust and reliable
- Automatic locking
- Optimised yarn path
- Flexible creel loading with up to 3 packages and a maximum total weight of 16 kg
- Extra plug-in options for alternative customer requirements
- Various creel yarn brakes
- Simple operation
