Drafting systems for roving frames
Versatility

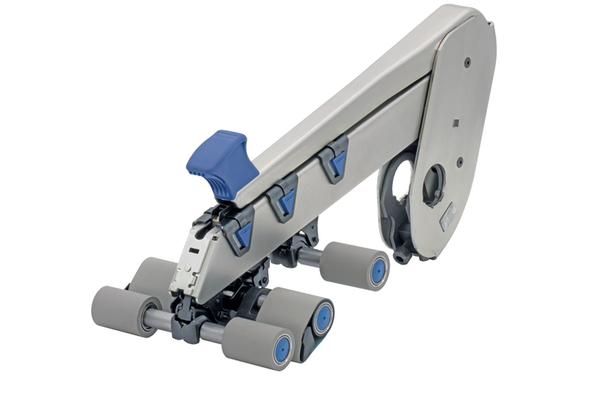

Increased efficiency for the production of high quality rovings with PK 1580
The spring loaded weighting arms PK 1580 offers due to its enhanced user-friendliness more flexibility for the spinning process and an improved process reliability, thus resulting in rovings of optimum quality. The PK 1580 weighting arms are intended for 3-roller and 4-roller drafting systems. They are suitable for spinning cotton, man-made fibres or blends thereof.
Features
- Optimised surface protection for long life
- Smaller load tolerances
- Visible load indicators
- Ergonomic handle
- Top apron cradle concept with individual tensioning system
- Easy disassembly of top rollers
Types
- 3-roller version (Top roller diameter 28 mm)
- 3-roller version (Top roller diameter 35 mm)
- 4-roller version (Top roller diameter 28 mm
| Top apron cradle | |
|---|---|
| OH 5022 | For cotton and synthetic fibres up to approx. 45 mm fibre length |
| OH 5042 | For cotton and synthetic fibres up to approx. 54 mm fibre length |
| Top rollers | |
| LP 1015 | |
| LP 1215 |
PK 1555 mechanical weighting arm for increased efficiency
The spring-loaded weighting arm PK 1555 is your optimum conversion option when switching from our pneumatic weighting arm series PK 5000.
The PK 1555 offers more flexibility for the spinning process and an improved process reliability, thus resulting in rovings of optimum quality. They are suitable for spinning cotton, man-made fibres or blends thereof.
Features
- Smaller load tolerances
- Visible load indicators
- Ergonomic handle
- Top apron cradle concept with individual tensioning system
- Easy disassembly of top rollers
- Optimum solution for converting a pneumatical drafting system
Types
- 3-roller version (Top roller diameter 28 mm)
- 3-roller version (Top roller diameter 35 mm)
- 4-roller version (Top roller diameter 28 mm)
- 4-roller version (Top roller diameter 35 mm)
| Top apron cradle | |
|---|---|
| OH 5022 | For cotton and synthetic fibres up to approx. 45 mm fibre length |
| OH 5042 | For cotton and synthetic fibres up to approx. 54 mm fibre length |
| Top rollers | |
| LP 1015 | |
| LP 1215 |
PK 1550 mechanical weighting arms
The spring loaded weighting arms PK 1550 offer more flexibility for the spinning process and an improved process reliability, thus resulting in rovings of optimum quality. The PK 1550 weighting arms are intended for 3-roller and 4-roller drafting systems. They are suitable for spinning cotton, man-made fibres or blends thereof of up to approx. 60 mm length.
Available gauges: 90 / 100 / 110 mm
Features
- Optimised surface protection for long life
- Smaller load tolerances
- Visible load indicators
- Ergonomic handle
- Top apron cradle concept with individual tensioning system
- Easy disassembly of top rollers
Types
- 3-roller version (top roller diameter D = 28 mm)
- 3-roller version (top roller diameter D = 35 mm)
- 4-roller version (top roller diameter D = 28 mm)
| Top apron cradle | |
|---|---|
| OH 5022 | For cotton and synthetic fibres up to approx. 45 mm fibre length |
| OH 5042 | For long cotton fibres and synthetics up to 54 mm fibre length |
| OH 5245 | For synthetics up to approx. 60 mm fibre length. Only for the 3-roller-version |
| Top rollers | |
| LP 1015 |
PK 5000 pneumatic weighting arms
The PK 5000 series weighting arms are an innovative and future-oriented drafting system for short staple roving frames. It can be used for spinning of cotton, man-made fibres and combinations of these up to a fibre length of approx. 60 mm. The load on the top rollers is adjusted infinitely and centrally using a compressed air supply system. This ensures a constant load at all spinning positions of the roving frame. The PK 5000 weighting arm offers an extremely practical method of centralised partial load, which is easy to set and persuasively simple to operate.
Available gauges: 90 / 100 / 110 mm
Features
- Simple and easy to operate
- Rapid erection and setting
- Simple height adjustment
- Centralised and infinite load setting
- Practical and safe partial load
- Reduction in the operating forces
Types
- 3-roller version (Top roller diameter 28 mm)
- 3-roller version (Top roller diameter 35 mm)
- 4-roller version (Top roller diameter 28 mm)
- 4-roller version (Top roller diameter 35 mm)
| Top apron cradle | |
|---|---|
| OH 5022 | For cotton and synthetic fibres up to approx. 45 mm fibre length |
| OH 5042 | For long cotton fibres and synthetics up to 54 mm fibre length |
| OH 5245 | For synthetics up to approx. 60 mm fibre length. Only for the 3-roller-version |
| Top rollers | |
| LP 1015 |
Downloads
Brochure_Drafting system_EN.pdf
14.03 MB
Fact Sheet_PK1555_PK5000_Fact_sheet_EN
2.70 MB
Fact Sheet_PK1580_PK5000_Fact_sheet_EN
2.59 MB
FS_Drafting systems for worsted ring spinning PK 1660, 6000_EN
615.72 KB
