CarpetTwister 1.12
Two-for-one twisting machine
The decades-long success story of the CarpetCabler CarpetTwister writes a new chapter with the 1.12 series.
High flexibility and increased productivity were just as much a focus during development as simple handling and optimised data connection.
Through the symbiosis of state-of the-art technology and decades of experience, the new 1.12 offers an optimum of possibilities for the production of high-quality strands for sophisticated carpets and other textiles - and in the most economical way.
The decades-long success story of the CarpetCabler CarpetTwister writes a new chapter with the 1.12 series.
High flexibility and increased productivity were just as much a focus during development as simple handling and optimised data connection.
Through the symbiosis of state-of the-art technology and decades of experience, the new 1.12 offers an optimum of possibilities for the production of high-quality strands for sophisticated carpets and other textiles - and in the most economical way.
Optimized spindle family enables energy savings
The spindle family covers following types:
| Dimensions [mm] | Universal 285 | Spindle 285 | Spindle 275 | Spindle 260 |
| Feed pot package | 285 | 285 | 275 | 260 |
| Spindle gauge | 500 | 500 | 450 | 450 |
Energy savings due to energy optimized machine components
High class efficiency main drive motors
Optimized bearings in the entire spindle area
- Higher productivity by delivery speeds of up to 120 m/min when up-twisting
- Less space needed due to closer spindle spacing
- Higher production speeds due to low yarn balloon tension
Reduced machine operating time due to central adjustments
Fast, simple and precise motor-driven drive for an optimum height position.
An optimum, uniform height position on all yarn balloon guides.
Package conveyor belt to rapidly clear away the finished packages
Easy and quick yarn threading due to Volco-/Creeljet-Systems
Computer-controlled electro-mechanical gearbox
Novelties
- Control panel (human-machine interface)
The new control panel with multitouch technology and the innovative user interface makes operation even more intuitive and easier.
It registers, controls and monitors the entire production sequence and administers all machine and lot parameters as well as your production data.
The simple and self-explanatory user interface guarantees fast and straightforward input and simplifies machine control. Stored lot data can be called up easily and simplifies handling.
- Monitoring of the production status
The status of the individual spindles is monitored and displayed centrally on the operating terminal, as are the efficiency and other production data.
Optionally, the data can be read out and further processed via our Senses production recording system.

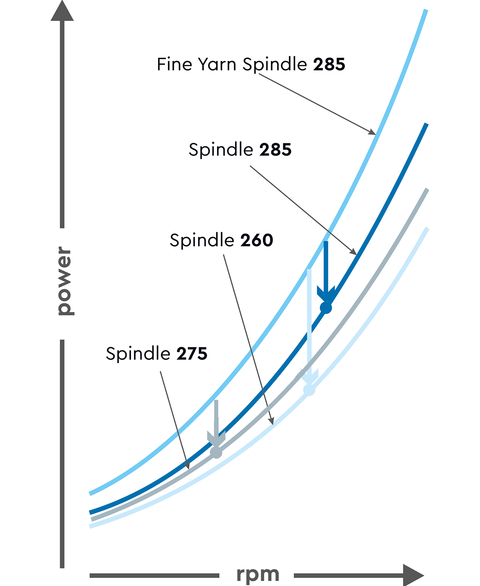

- The Saurer spindle family
The Saurer spindle family, extended by the 275 spindle, offers an optimal answer to every market requirement.
Fine strand spindle 285
Spindle 285 Energy savings of up to 15%
Spindle 275 Energy savings of up to 25%
Spindle 260 Energy savings of up to 35%
- Servo gearbox
The programmable servo gearbox combines innovative development with years of experience in textile machine construction.
The maintenance-friendly and clean, oil-free design allows the production of optimal cross-wound delivery packages even at high delivery speeds.
The separate machine sides mean that small strand lots can be processed simultaneously without any problems, while the computer-aided control system eliminates time-consuming conversion times.
CarpetTwister 1.12
Strong and reliable life-cycle partnership.
Unique smart solutions to increase the benefit to the customer.
Notable performance and sustainability throughout the machine lifetime.
