Autocard SC8s
Moving ahead.
The new Autocard SC 8s is the 3rd generation of Autocards. The features of our new Autocard SC 8s ensure excellent fibre utilisation, sliver quality and spinning efficiency. Whether it is to improve production efficiency, enhance product quality or make equipment maintenance more convenient.
The new Autocard SC 8s is the 3rd generation of Autocards. The features of our new Autocard SC 8s ensure excellent fibre utilisation, sliver quality and spinning efficiency. Whether it is to improve production efficiency, enhance product quality or make equipment maintenance more convenient.
E³: our development philosophy
The needs of our customers are our top priority. With every new or further development, we pay attention to reducing energy consumption, increasing efficiency and improving ergonomics. The E³ philosophy underlies all our designs and our smart solutions provide added value to customers. With the transformation of the textile industry for the Circular Economy, the processing of sustainable fibres is another important focus point in our developments.
- Equipped with a high-efficiency energy-saving motor to reduce energy consumption.
- Higher output, with a 25% reduction in energy consumption per ton of yarn.
- Comes with an energy consumption monitoring function to help enterprises achieve precise energy control.
- Optimized carding components reduce the frequency of replacing wear parts and lower maintenance costs.
- Superior carding efficiency increases output by 28%.
- Compatible with digital platforms to optimize processes, reduce raw material waste, and improve qualification rates.
- Innovative human-machine interface design, adapted to the line of sight, reducing neck and waist fatigue.
- Front trapezoidal large viewing window, enabling intuitive presentation of maintenance status.
Highlights
- Suitable for all short fibres from natural fibres, like cotton, to man-made fibres and recycled and regenerated fibres
- Intelligent design for easier online process adjustment
- 1.46m extra-large cyclinder diameter with 3.46m carding length boosts efficiency - higher productivity, less floor space
- Productivity increased by up to 28%*
- Dropping detection and automated setting
- Automatic adjustment of revolving flats gauge
- Pneumatically assisted piecing of the sliver
- Integrated chute feeder
- Seamless can change
- Core components for energy saving

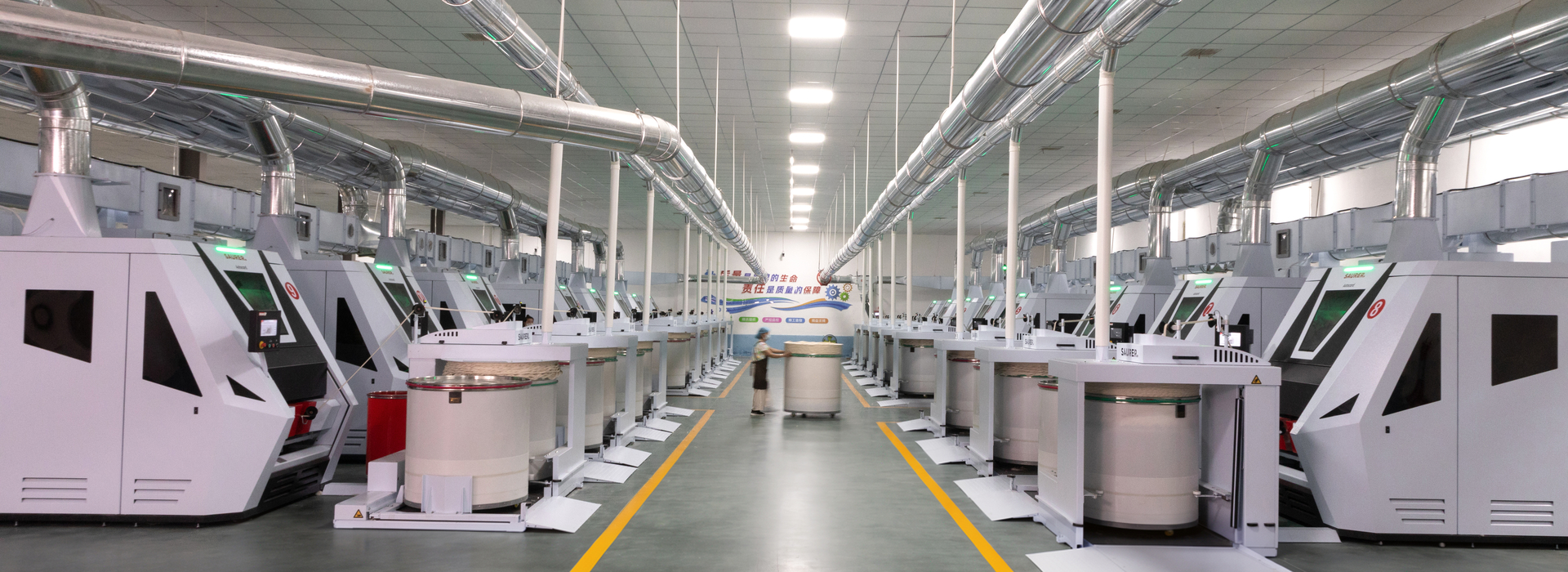

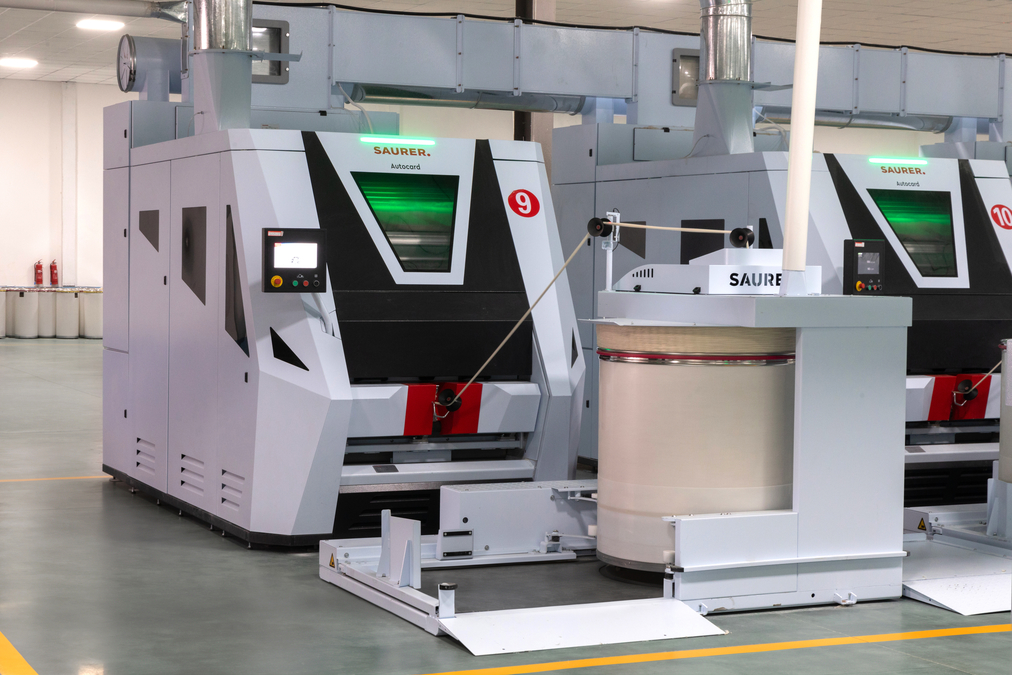

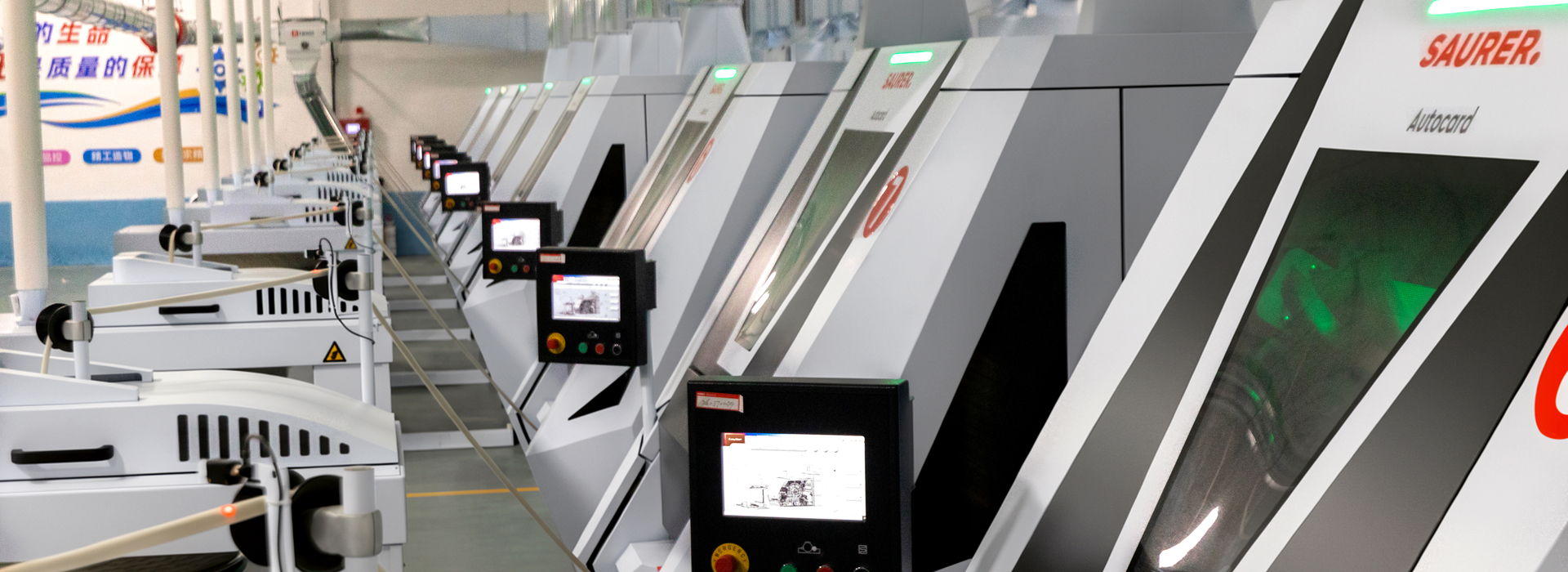

Picture gallery
| Model | JSC 230 | JSC 328 | Autocard SC 6 | Autocard SC 7 | Autocard SC 8 | Autocard SC 8s |
| Model Positioning | Economical | Mature High‑output | Standard Efficiency | Wide‑width Intelligent | Premium High‑output | Premium Quality |
| Effective Working Width | 1020mm | 1280mm | 1380mm | 1380mm | 1380mm | 1120mm |
| Cylinder Diameter | 1290mm | 1290mm | 1290mm | 1290mm | 1460mm | 1460mm |
| Licker‑in Diameter | 250mm | 250mm | 250mm | 250mm | 250mm | 250mm |
| Doffer Diameter | 700mm | 700mm | 700mm | 700mm | 700mm | 700mm |
| Beater Diameter | 250mm | 250mm | 250mm | 250mm | 300mm | 300mm |
| Number of Flats / Working Flats | 84/30 | 84/30 | 92/34 | 92/34 | 112/42 | 112/42 |
| Front / Back Fixed Flats | 12/12 | 12/12 | 12/12 | 12/12 | 12/16 | 12/16 |
| Applicable Fiber Types | Pure cotton, machine‑picked cotton, regenerated cotton, polyester, viscose, blended fibers | |||||
| Applicable Fiber Length | 10‑76mm | 10‑76mm | 10‑76mm | 10‑76mm | 10‑76mm | 10‑76mm |
| Maximum Capacity | 120kg/h | 150kg/h | 180kg/h | 180kg/h | 250kg/h | 180kg/h |
| Three licker‑in Assembly | ○ | ○ | ○ | ○ | ○ | ○ |
| Front Brush Assembly | ○ | ○ | ○ | ○ | ○ | ○ |
| Suction System (Individual Suction for Large Brush) | ○ | ○ | ○ | ○ | ○ | ○ |
| Suction System (Individual Suction for Licker‑in) | − | ○ | ○ | ○ | ○ | ○ |
| Suction System (Bottom Suction) | − | ○ | − | − | ○ | ○ |
| Independent Variable‑frequency for Each Drafting Unit | ○ | ○ | ● | ● | ● | ● |
| Long‑short Segment Auto‑levelling | ● | ● | ● | ● | ● | ● |
| Automatic Flat Setting Adjustment | − | − | ○ | ● | ● | ● |
| Licker‑in Waste Detection & Automatic Adjustment | − | − | ○ | ○ | ○ | ○ |
| Cylinder Metal Protection | ○ | ● | ● | ● | ● | ● |
| Integrated Feed Box | − | − | − | ● | ● | ● |
| Senses Mill | ○ | ○ | ○ | ○ | ○ | ○ |
| Auxiliary Doffing | ● | ● | ● | ● | ● | ● |
| Non‑stop sliver can change | ● | ● | ● | ● | ● | ● |
| PDS Drafting System for Coiler | Not Supported | Not Supported | Not Supported | Not Supported | ○ | ○ |
| Power | 14.89kW | 15.42kW | 22.39kW | 22.39kW | 30.77kW | 21.77kW |
| Air Consumption | 400NL/h | 400NL/h | 400NL/h | 400NL/h | 400NL/h | 400NL/h |
| Machine Weight | 6500kg | 7000kg | 7300kg | 7300kg | 7500kg | 6900kg |
| Notes ： ● Basic equipment ○ Optional − Not available | ||||||
