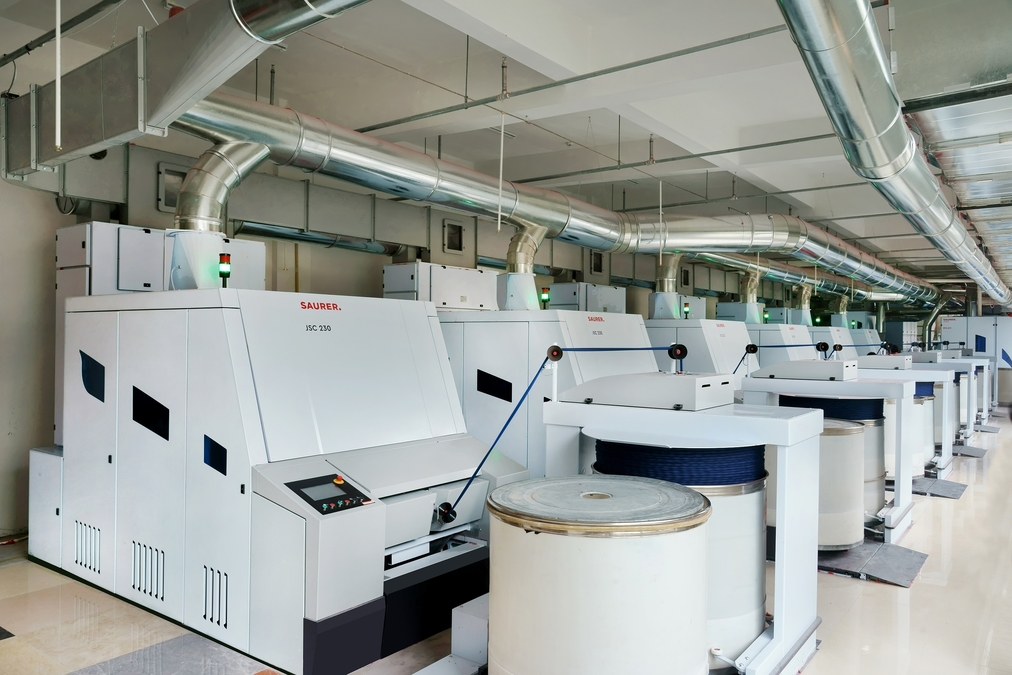

Card JSC 230

The best combination of yield and quality.

Card JSC 230 integrates the innovative highlights of the intelligent Autocard. It can fully meet the spinning requirements of flexible configuration of differentiated fibers, and achieve maximum output in a smarter and more economical way.

The right combination of blow room and carding technology ensures excellent fiber utilisation and sliver quality for high efficiency and yarn quality in spinning.

Economics

Up to 20% more productivity
Up to 2.82m² carding area
Space saving and lower energy cost
Lower maintenance cost in production
Reduced workload

Highlights

Single or triple licker-in for flexible process
Prime components for lower energy consumption
Optimised airflow for higher efficiency waste suction
Long-term and short-term autolevelling for an excellent sliver quality
Seamless can change for higher quality and higher production
Mill management system Senses for analysing all spinning data in one program - in real time, securely and from anywhere

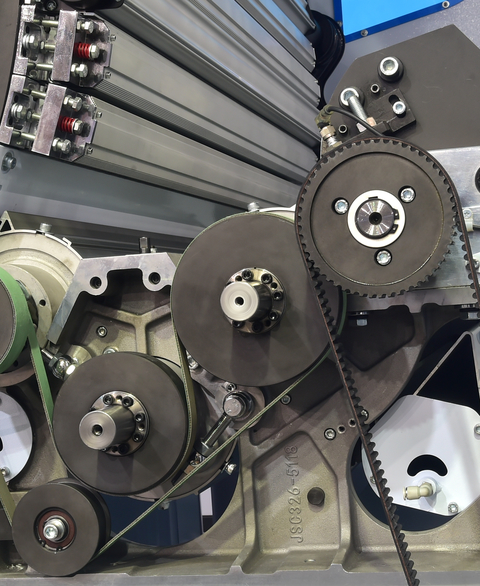

JSC 230 - Triple licker-in

The impurity ratio of sliver is high when the raw material is machine-harvested cotton. JSC 230A is configured with V-sharp triple licker-in, and use the forward feeding structure can reduce the impurity ratio in sliver effectively. The test result shows the ratio can decrease 15% when use triple licker-in module.

Comparison of card features

Model	JSC 230	JSC 328	Autocard SC 6	Autocard SC 7	Autocard SC 8	Autocard SC 8s
Model Positioning	Economical	Mature High‑output	Standard Efficiency	Wide‑width Intelligent	Premium High‑output	Premium Quality
Effective Working Width	1020mm	1280mm	1380mm	1380mm	1380mm	1120mm
Cylinder Diameter	1290mm	1290mm	1290mm	1290mm	1460mm	1460mm
Licker‑in Diameter	250mm	250mm	250mm	250mm	250mm	250mm
Doffer Diameter	700mm	700mm	700mm	700mm	700mm	700mm
Beater Diameter	250mm	250mm	250mm	250mm	300mm	300mm
Number of Flats / Working Flats	84/30	84/30	92/34	92/34	112/42	112/42
Front / Back Fixed Flats	12/12	12/12	12/12	12/12	12/16	12/16
Applicable Fiber Types	Pure cotton, machine‑picked cotton, regenerated cotton, polyester, viscose, blended fibers
Applicable Fiber Length	10‑76mm	10‑76mm	10‑76mm	10‑76mm	10‑76mm	10‑76mm
Maximum Capacity	120kg/h	150kg/h	180kg/h	180kg/h	250kg/h	180kg/h
Three licker‑in Assembly	○	○	○	○	○	○
Front Brush Assembly	○	○	○	○	○	○
Suction System (Individual Suction for Large Brush)	○	○	○	○	○	○
Suction System (Individual Suction for Licker‑in)	−	○	○	○	○	○
Suction System (Bottom Suction)	−	○	−	−	○	○
Independent Variable‑frequency for Each Drafting Unit	○	○	●	●	●	●
Long‑short Segment Auto‑levelling	●	●	●	●	●	●
Automatic Flat Setting Adjustment	−	−	○	●	●	●
Licker‑in Waste Detection & Automatic Adjustment	−	−	○	○	○	○
Cylinder Metal Protection	○	●	●	●	●	●
Integrated Feed Box	−	−	−	●	●	●
Senses Mill	○	○	○	○	○	○
Auxiliary Doffing	●	●	●	●	●	●
Non‑stop sliver can change	●	●	●	●	●	●
PDS Drafting System for Coiler	Not Supported	Not Supported	Not Supported	Not Supported	○	○
Power	14.89kW	15.42kW	22.39kW	22.39kW	30.77kW	21.77kW
Air Consumption	400NL/h	400NL/h	400NL/h	400NL/h	400NL/h	400NL/h
Machine Weight	6500kg	7000kg	7300kg	7300kg	7500kg	6900kg
Notes ： ● Basic equipment ○ Optional − Not available
