Carding machine

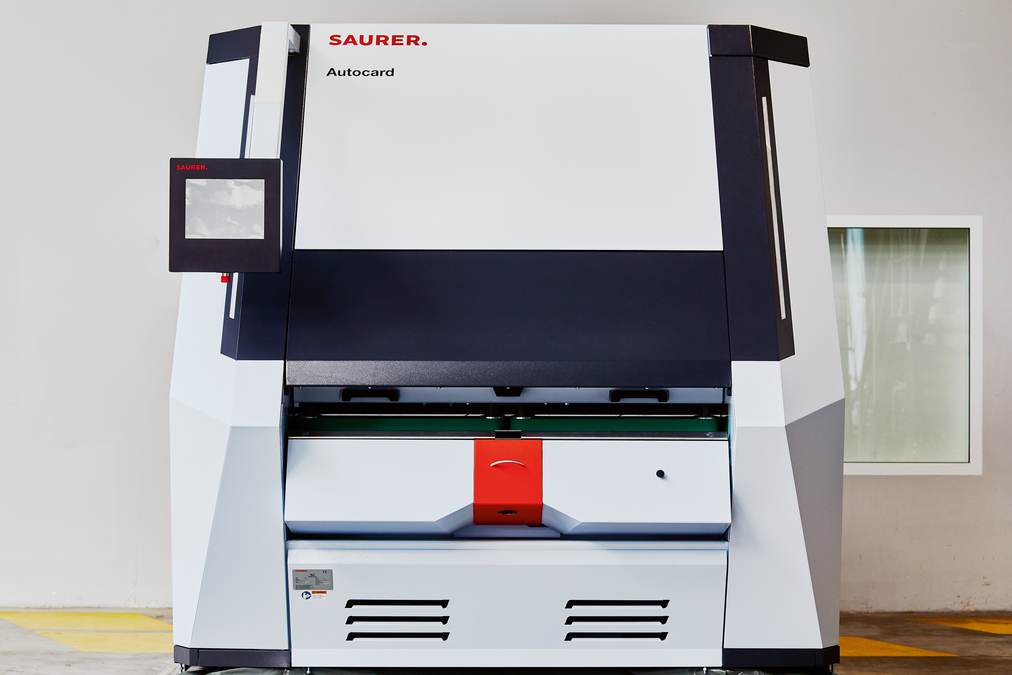

Autocard SC6
Be prepared.
The new Autocard was developed to create further value in the fibre preparation chain. It offers the right solutions to prepare all kinds of fibres for the subsequent processes in the textile value chain. The right combination of blow room and carding machinery ensures excellent fibre utilisation and sliver quality, thus increasing the efficiency of the spinning process and improving the quality of yarn.
The new Autocard was developed to create further value in the fibre preparation chain. It offers the right solutions to prepare all kinds of fibres for the subsequent processes in the textile value chain. The right combination of blow room and carding machinery ensures excellent fibre utilisation and sliver quality, thus increasing the efficiency of the spinning process and improving the quality of yarn.
- Up to 18% more productivity
- Up to 4.2m2 carding area
- Space saving and less energy cost
- Less maintenance cost in production
- Reduced workload
Highlights
- Larger carding area for higher productivity
- Optimised core components for lower energy consumption
- LED light display for higher operation efficiency
- Micro short-term autolevelling system for excellent sliver quality
- Seamless can change for higher quality and higher production
| Model | JSC 230 | JSC 328 | Autocard SC 6 | Autocard SC 7 | Autocard SC 8 | Autocard SC 8s |
| Model Positioning | Economical | Mature High‑output | Standard Efficiency | Wide‑width Intelligent | Premium High‑output | Premium Quality |
| Effective Working Width | 1020mm | 1280mm | 1380mm | 1380mm | 1380mm | 1120mm |
| Cylinder Diameter | 1290mm | 1290mm | 1290mm | 1290mm | 1460mm | 1460mm |
| Licker‑in Diameter | 250mm | 250mm | 250mm | 250mm | 250mm | 250mm |
| Doffer Diameter | 700mm | 700mm | 700mm | 700mm | 700mm | 700mm |
| Beater Diameter | 250mm | 250mm | 250mm | 250mm | 300mm | 300mm |
| Number of Flats / Working Flats | 84/30 | 84/30 | 92/34 | 92/34 | 112/42 | 112/42 |
| Front / Back Fixed Flats | 12/12 | 12/12 | 12/12 | 12/12 | 12/16 | 12/16 |
| Applicable Fiber Types | Pure cotton, machine‑picked cotton, regenerated cotton, polyester, viscose, blended fibers | |||||
| Applicable Fiber Length | 10‑76mm | 10‑76mm | 10‑76mm | 10‑76mm | 10‑76mm | 10‑76mm |
| Maximum Capacity | 120kg/h | 150kg/h | 180kg/h | 180kg/h | 250kg/h | 180kg/h |
| Three licker‑in Assembly | ○ | ○ | ○ | ○ | ○ | ○ |
| Front Brush Assembly | ○ | ○ | ○ | ○ | ○ | ○ |
| Suction System (Individual Suction for Large Brush) | ○ | ○ | ○ | ○ | ○ | ○ |
| Suction System (Individual Suction for Licker‑in) | − | ○ | ○ | ○ | ○ | ○ |
| Suction System (Bottom Suction) | − | ○ | − | − | ○ | ○ |
| Independent Variable‑frequency for Each Drafting Unit | ○ | ○ | ● | ● | ● | ● |
| Long‑short Segment Auto‑levelling | ● | ● | ● | ● | ● | ● |
| Automatic Flat Setting Adjustment | − | − | ○ | ● | ● | ● |
| Licker‑in Waste Detection & Automatic Adjustment | − | − | ○ | ○ | ○ | ○ |
| Cylinder Metal Protection | ○ | ● | ● | ● | ● | ● |
| Integrated Feed Box | − | − | − | ● | ● | ● |
| Senses Mill | ○ | ○ | ○ | ○ | ○ | ○ |
| Auxiliary Doffing | ● | ● | ● | ● | ● | ● |
| Non‑stop sliver can change | ● | ● | ● | ● | ● | ● |
| PDS Drafting System for Coiler | Not Supported | Not Supported | Not Supported | Not Supported | ○ | ○ |
| Power | 14.89kW | 15.42kW | 22.39kW | 22.39kW | 30.77kW | 21.77kW |
| Air Consumption | 400NL/h | 400NL/h | 400NL/h | 400NL/h | 400NL/h | 400NL/h |
| Machine Weight | 6500kg | 7000kg | 7300kg | 7300kg | 7500kg | 6900kg |
| Notes ： ● Basic equipment ○ Optional − Not available | ||||||
