Drafting systems for short staple ring frames
Versatility
PK 2630 SE series weighting arms
Patented features for increased customer benefits and higher flexibility in application.
In today’s market spinning mills have to be very flexible in order to meet the rapidly changing fashion and growing quality requirements:
- Unsurpassed yarn quality
- Suited for all fibres and yarn counts
- Minimal variation of yarn quality between spinning positions
- Reliable spinning processes and excellent quality
- High flexibility in weighting arm settings
With PK 2630 SE Texparts product line has developed a weighting arm to meet the requirements of the modern spinning mill.
Types
- PK 2630 SE 3-roller version (Top roller diameter 30 mm)
- PK 2655 SE 3-roller V-draft version (Top roller diameter 30 mm)
- PK 2635 SE 3-roller version (Top roller diameter 35 mm)
- PK 2665 SE 3-roller V-draft version (Top roller diameter 35 mm)
| Top apron cradle | |
|---|---|
|
OH 2122
OH 2132
OH 2022
|
For cotton fibres, synthetics and corresponding blends up to 45 mm fibre length |
| OH 2142 | For long cotton fibres and synthetics up to 54 mm fibre length |
| OH 122 | For synthetics up to approx. 60 mm fibre length |
| Top rollers | |
| LP 1002 | |
| LP 1003 |
Higher flexibility in application

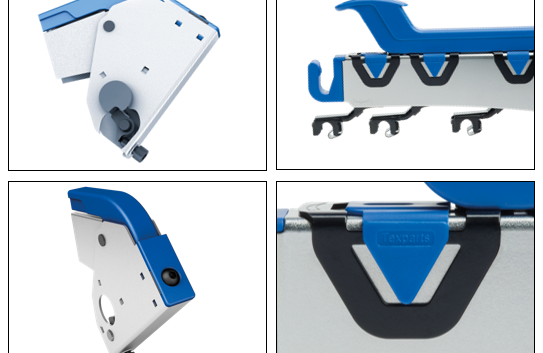

EasyFit - Faster and easier fixing of the weighting arm on the support rod without damages. Fitting and adjustment by only one person. As less time is needed, the machine downtime is reduced.
EasySet - Quick and very accurate height setting. EasySet also ensures less variation of yarn quality from spinning position to spinning position.
EasyHandle - Ergonomic handle, optimized for easy handling based on a new lever construction. EasyHandle ensures opening and closing the weighting arm with the use of very little force.
EasyDraft - Independently working single elements with no load variation. Flexible settings of the draft field distances. The drafting system can be adapted easily to fibre properties and ever changing spinning requirements.
EasyIndicate - Enhanced load indication. Due to 5 possible load steps with a maximum load of 200N per element the fibre clamping and guidance is ensured in an optimal way. Variable load adaptation allows high technological flexibility, gentle treatment and reduced wear of related components. EasyIndicate enables an easy reading of the load and prevents false settings. Load settings can be checked even when the weighting arm is closed and is in its working position.
PK 2630 SEH series weighting arms
For ring-frames with hexagonal support rods
The PK 2630 SEH is a pure mechanical weighting arm, which hardly requires any maintenance at all. The loads are constant throughout the lifetime and do not need re-adjusting. This leads to a constant and uniform load and consequently high consistency in yarn quality. The weighting arm can be adapted on the existing hexagonal support rod. In case of conversions, existing good quality top rollers can be used.
| Top apron cradle | |
|---|---|
|
OH 2122
OH 2132
|
For cotton fibres, synthetics and corresponding blends up to 45 mm fibre length |
| OH 2142 | For long cotton fibres and synthetics up to 54 mm fibre length |
| Top rollers | |
| LP 1002 | |
| LP 1003 |
Compact Adaptions
Compact systems in the market can be retrofitted to the well established weighting arms PK 2630 SE and PK 2630 SEH.
Advanced versatility
One advantage is that the front roller load can be set fully independently from the nip roller load. Consequently there is no interference between nip and front top roller. The front roller is fully seated in the guide arm and ensures best alignment to the specific requirement of the processed material.
Advantages of easy adaption
To adapt the compact systems to the weighting arms only the upper shell of the compact system has to be exchanged with our redesigned shell. The retrofitting is working for 4 cylinder compact systems with positive driven bottom rollers as well as for compact systems for weighting arms with hexagonal support rod.
PK 2000 Plus series weighting arms
The standard drafting system with a PLUS.
The PK 2000 Plus can be applied on three-roller double-apron drafting systems on short staple ring spinning machines suitable for spinning pure cotton, man-made fibres or blends of both types up to 60 mm fibre length.
Available gauges: 68,4 / 75 / 82,5 / 90 mm
Features
- Resistant surface due to special powder coating
- Top apron cradle concept with individual tensioning system
- Individual load adjustment
Types
- PK 2025 3-roller standard (top roller diameter 28 mm)
- PK 2035 3-roller standard (top roller diameter 35 mm)
| Top apron cradle | |
|---|---|
|
OH 2022
OH 62
|
For cotton fibres, synthetics and corresponding blends up to 45 mm fibre length |
|
OH 2042
OH 132
|
For long cotton fibres and synthetics up to 54 mm fibre length |
| OH 122 | For synthetics up to approx. 60 mm fibre length |
| Top rollers | |
| LP 1002 | |
| LP 1003 |
Downloads
Find out more about our products. Here we provide you with all the relevant documents for download in PDF format.
Brochure Drafting systems
14.03 MB
Fact Sheet LP1000_LP1200
1.88 MB
Success Story PK 2630 SEH_Dasar Rukun_EN
97.09 KB
